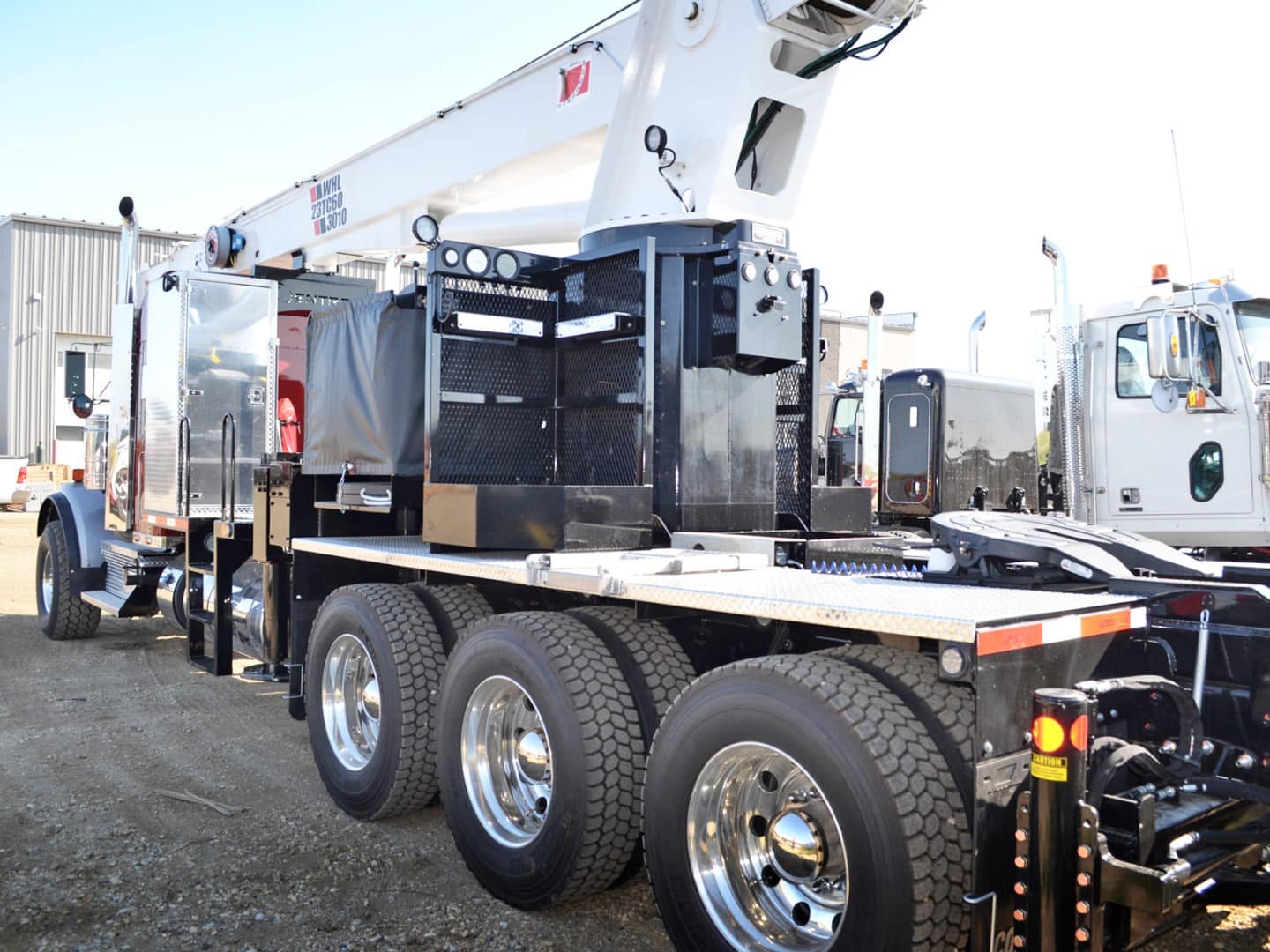

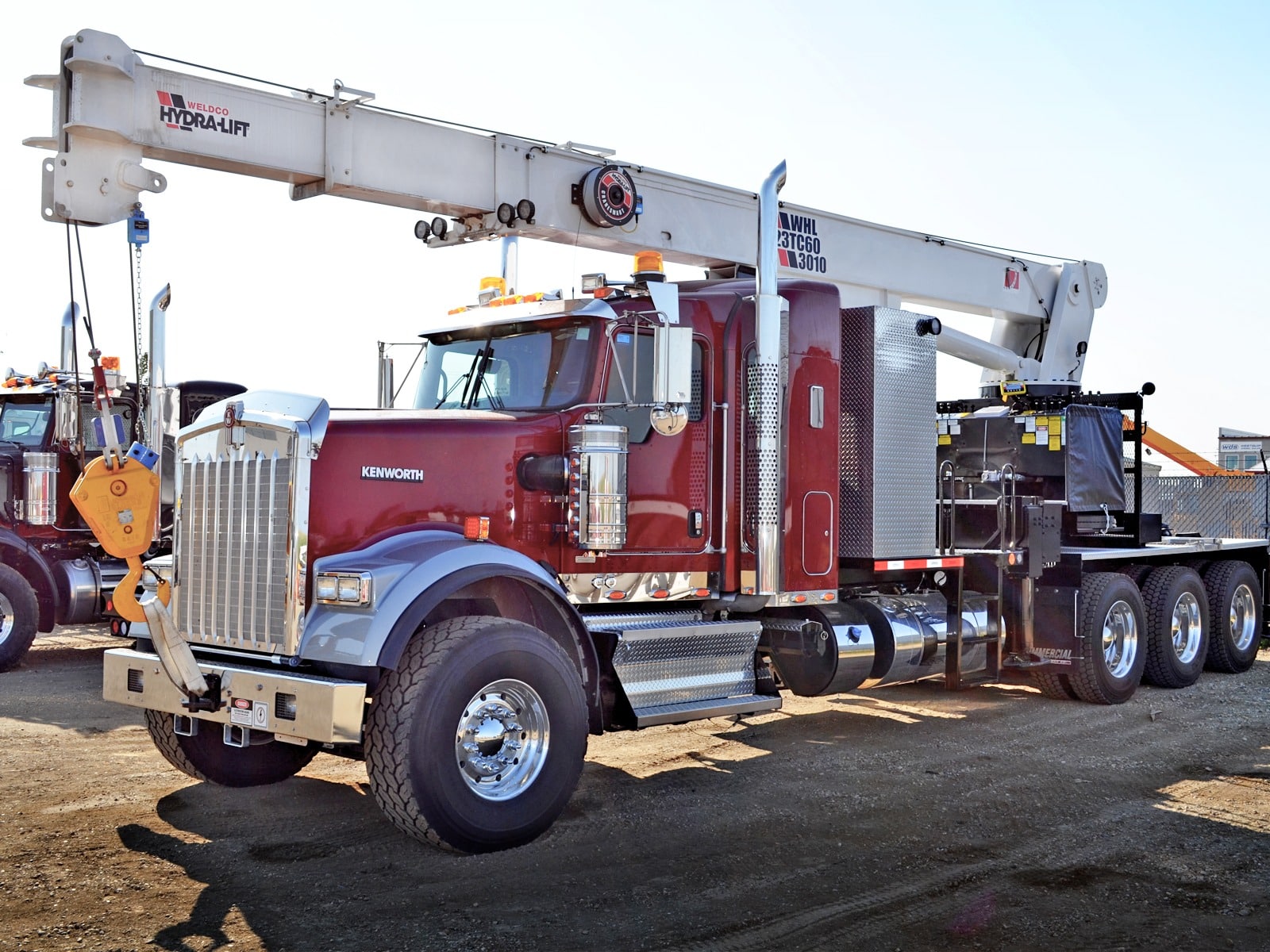

WHL23TC60

Designed as a mid-range crane, the Weldco Hydra-Lift WHL23TC60 crane is suitable for multiple applications where a 60 ft reach is required. The design shares the popular hydraulic control console and components with our classic WHL 30-ton cranes.

Download Brochure & Spec Sheet » Download Complete Product Guide »
  • 23-ton lifting capacity (30,000 lbs at 10’ radius)
  • 60’ boom length (70’ sheave height)
  • 12,000 lb planetary winch
  • Optional continuous rotation
  • External drive swing box with eccentric ring backlash adjustment
  • Load moment indicator (LMI) and shutdown system available
  • Out and down outriggers
  • Two speed winch motor can easily change between high and low speed for precise control and job efficiency
  • Large gear teeth prevents gear tooth breakage
  • External mount provides easy and instant service ability for maintenance and adjustment
  • Digital wireless weight indicator is available to inform the operator what the load is
  • LMI can be added and wired directly to the shut down valve to prevent overloading of the crane
