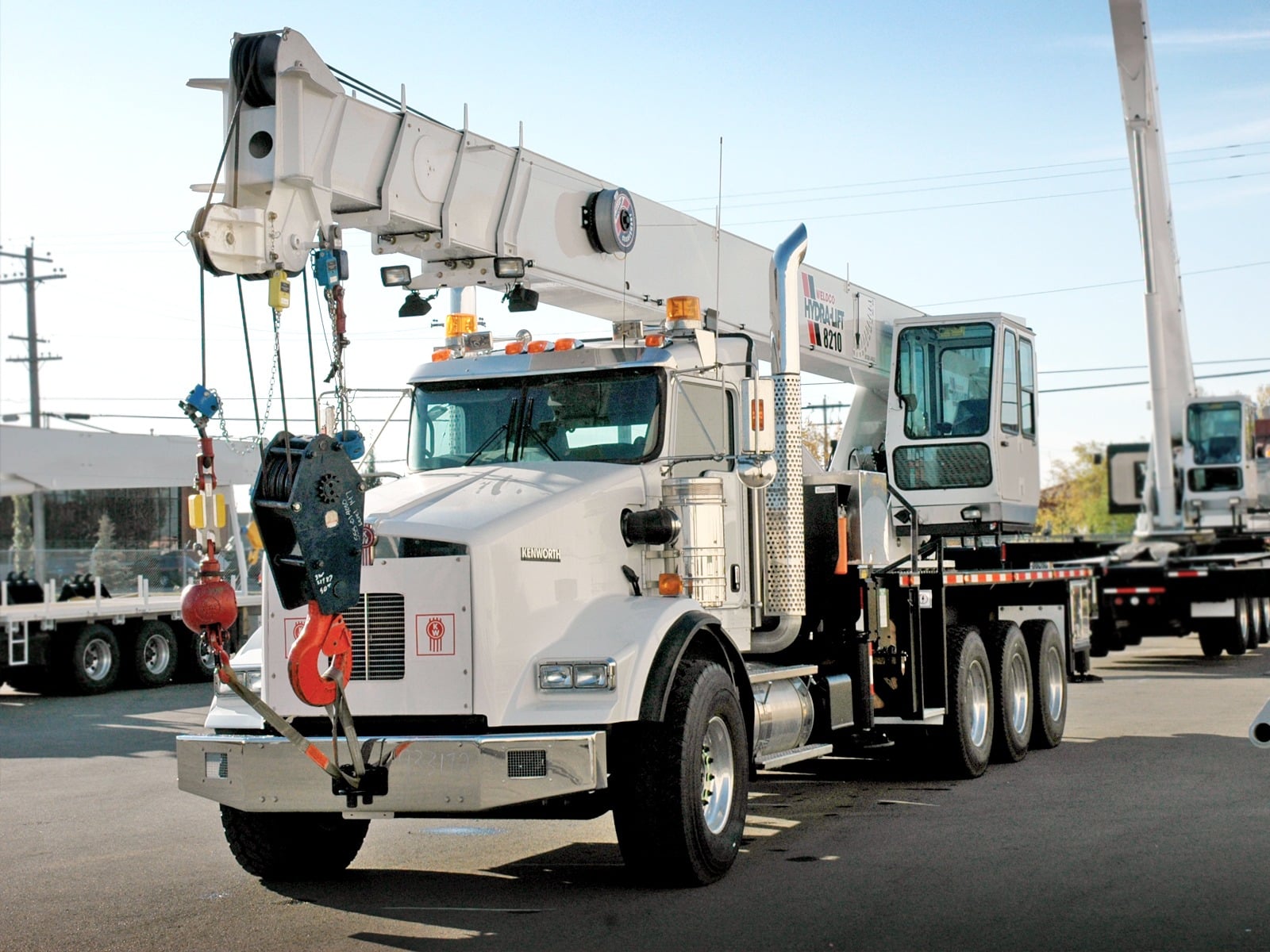

WHL50TC77 Taxi

Hydra-Lift 50-ton WHL50TC77 Swing Cab Cranes are ideally suited for the most demanding heavy lift jobs.

Out and down outriggers have independently operated horizontal extension cylinders and vertical jack cylinders, for true stability on uneven surfaces or in tight locations. Fully equipped cabs provide the operator with a comfortable working environment in all weather conditions. Mounted on a single steer tri-drive rear axle chassis, or tandem steer tandem rear axle chassis, WHL50TC77 Cranes deliver heavy lifting performance.

Download Brochure & Spec Sheet »
  • 50-ton lifting capacity
  • (82,000 lbs at 10’ radius)
  • 87’ tip height (fully extended)
  • 3 section 77’ fully proportional boom
  • 30.5’ retracted length
  • Continuous rotation
  • 15,000 lb, 2 speed grooved drum planetary winch with integral brake for high efficiency and security, includes cable packer
  • Out and down outriggers
  • Dual fan oil cooler
  • High strength box construction, welded booms for maximum strength to weight ratio
  • A2B and LMI system with digital radio weight indicator
  • Pre-wired boom and cab for work lights
  • Remote Monitoring Video System – two cameras and one in-cab display (view right rear outriggers and winches)
  • 40-ton four-sheave crane block (Easy Reeve)
  • 31’ Orientable (0°, 15°, 30°) swing around jib, stows on side of boom
  • 31’ – 51’ Orientable (0°, 15°, 30°) two-stage swing around jib, stows on side of boom
  • Hydraulic tank heater
  • Boom lights
  • Auxiliary winch options, 12,000 lb or
  • 15,000 lb winch
  • Two person self leveling man basket
  • Air conditioning
  • Remote radio crane controls
