WHL35TC75

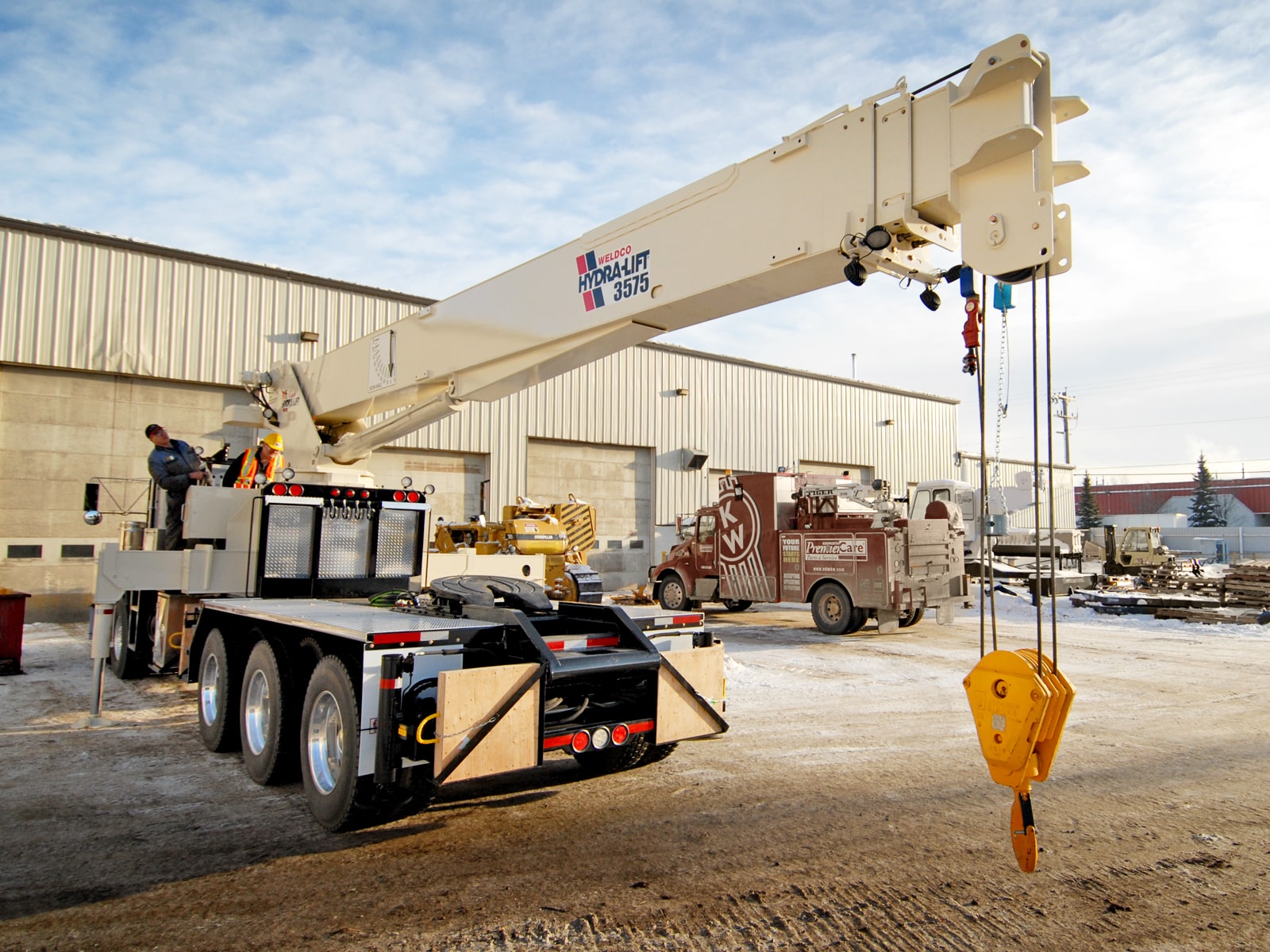

The Hydra-Lift 30-ton WHL35TC75 crane is a natural evolution of our popular 30-ton cranes. Higher lifting capacity and longer reach are obvious benefits of this design. The versatility of integrated out and down outriggers allows for crane set-up in space restricted areas. These cranes have a wider total spread than other outrigger styles and a dual control station design means the crane can be operated from either side.

  • 35-ton lifting capacity
  • (47,000lbs at 10’ radius)
  • 85’ tip height (fully extended)
  • 3 section 75’ fully proportional boom
  • 32’ retracted length
  • 15,000 lb, 2 speed grooved drum planetary winch with integral brake, includes cable packer
  • Out and down outriggers – 22’-2” max. spread
  • Planetary drive rotation gear box
  • Dual control console with platform
  • High strength box construction, welded booms for maximum strength to weight ratio
  • Standard audible capacity alert system
  • Standard audible outrigger warning alarm
  • Fixed swing around jib, stows along side of boom
  • Snatch block and crane blocks for multi-part line operation
  • Hydraulic tank heater
  • Digital radio weight indicator
  • Boom lights
